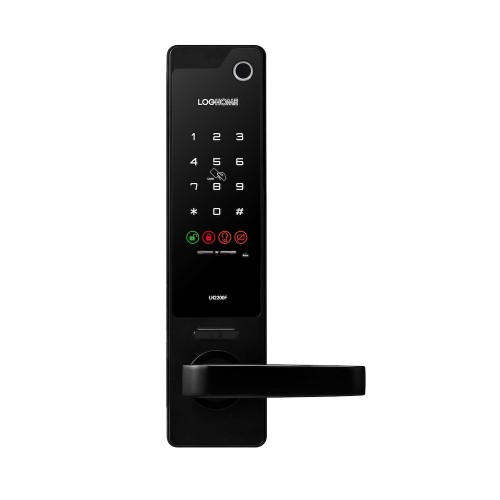

Loghome รุ่น LH2200F-SKN เป็น Main lock ที่ใช้ได้ทั้งระบบ รหัส บัตร (รองรับบัตรแรบบิท) สแกนนิ้ว และกุญแจ

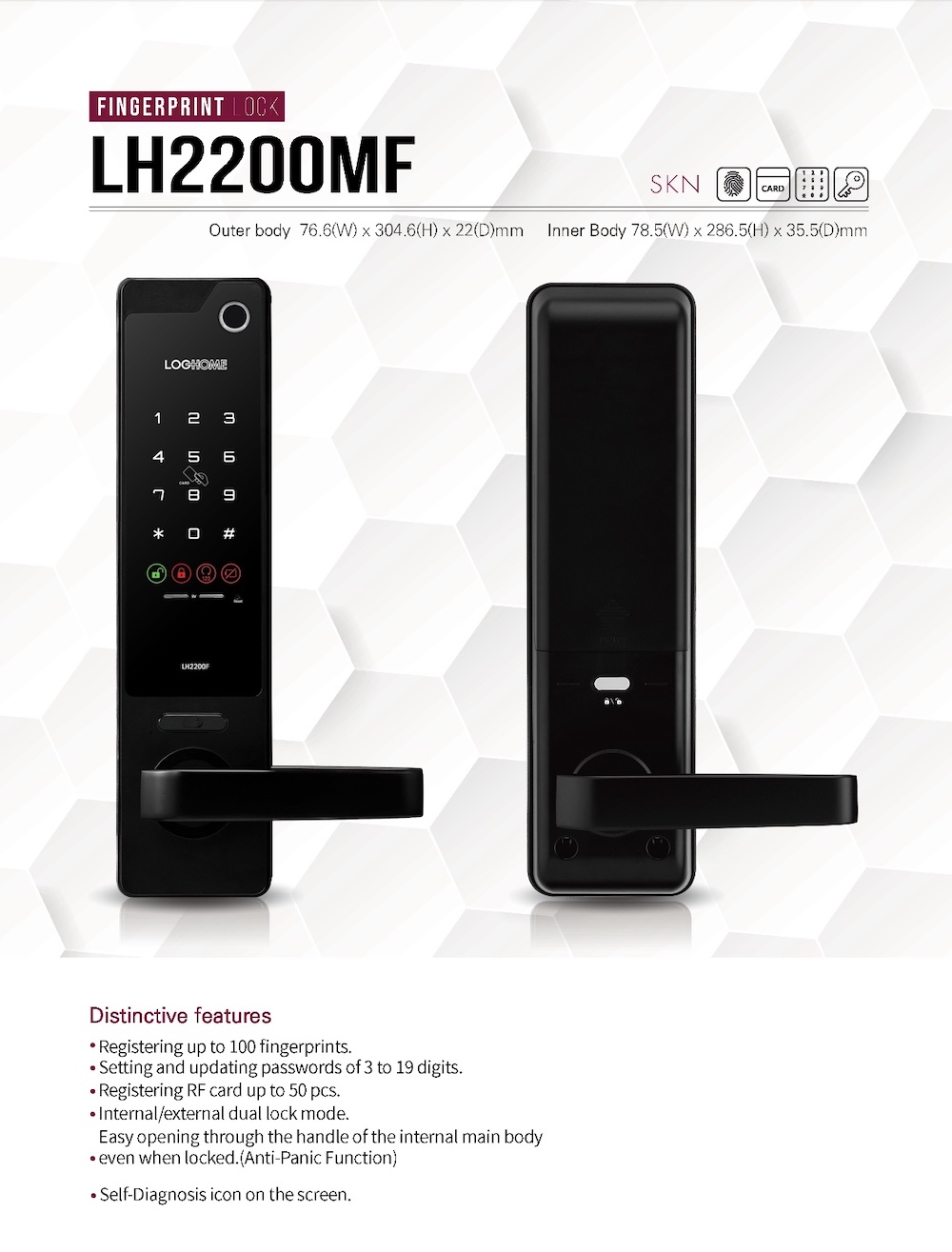

Distinctive Features :
● Set up and change the password of 3~19 digits
● Register the touch key up to 50 keys (Touch key type)
● Register up to 100 fingerprints.
● Auto locking function
● Indoor/outdoor double lockup function
● Generate the alarm sound of 90dB or higher when forced to open abnormally
● Can use the 9V emergency power supply
● Prevention of burglary and mischief
(It stops functioning for 1 minute when 5 consecutive password errors)
Product Specification
Category |
Description |
|
Basic information |
Model name |
LH2200F-SKN |
Access-Code |
3 ~ 19 digits |
|
Card registration number |
Within 50 |
|
Fingerprints |
100 |
|
Thickness of the door |
35 ~ 50 mm |
|
Size |
Outdoor body |
76.6 (W) × 304.6 (H) × 22 (D)mm |
Indoor body |
78.5 (W) × 286.5 (H) × 35.5 (D)mm |
|
Material |
Outdoor body |
AL, ZN, PC, ABS |
Indoor body |
AL, ZN, ABS | |
Treat the surface |
Triple metallic coating | |
Power |
Working power |
6V (alkaline battery 1.5V × 4 ea, AA SIZE) |
Emergency power |
9V rectangular alkaline battery
(separately purchased) |
|

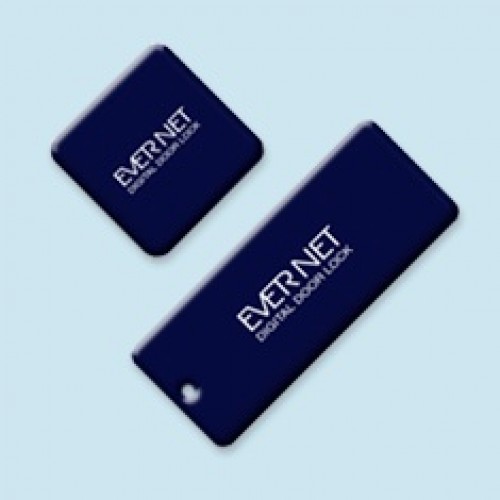

Card size |
25mm(W) x 25mm(H) x 0.8mm(D) |
|
Card frequency |
13.561Mhz |
Precaution
|
Read through this manual before use. Read the manual and then operate all functions. For a right after-sales service, prepare a product certificate and keep it. |
Do not disassemble the machine at random. It may result in failure. When you disassemble it at your disposal, it may not work normally. If necessary, contact the customer center. |
|
Don not give the machine any impact or perform remodeling in any case. Otherwise, it may result in failure and malfunction. |
|
Do use the machine at a place where there is no water or moisture. It has no waterproof and dustproof function. So, any failure may be caused by short circuit, etc. |
|
|
Close all holes in the door after installation. Otherwise, outsiders may enter without permission through a slot for milk throwing or questions. |
Keep the machine away from strong inflammable materials like a gas lighter. Otherwise, it may result in failure and malfunction. |
|
Do not use the machine at any place where there is strongb direct sunlight or high temperature. Otherwise, it may result in failure and malfunction. |
|
|
Do not install the machine at any place where it may contact directly with rain or snow. Otherwise, it may result in failure and malfunction. |
|
Do not give direct watering to the machine when cleaning. Otherwise, it may result in failure and malfunction. |
|
When exchanging batteries, replace all of them by new spares. If new batteries are used together with used ones, their life cannot be guaranteed and the machine may not work normally. |
|
Use genuine alkaline batteries only. If rechargeable batteries are used, the machine may not work normally. |

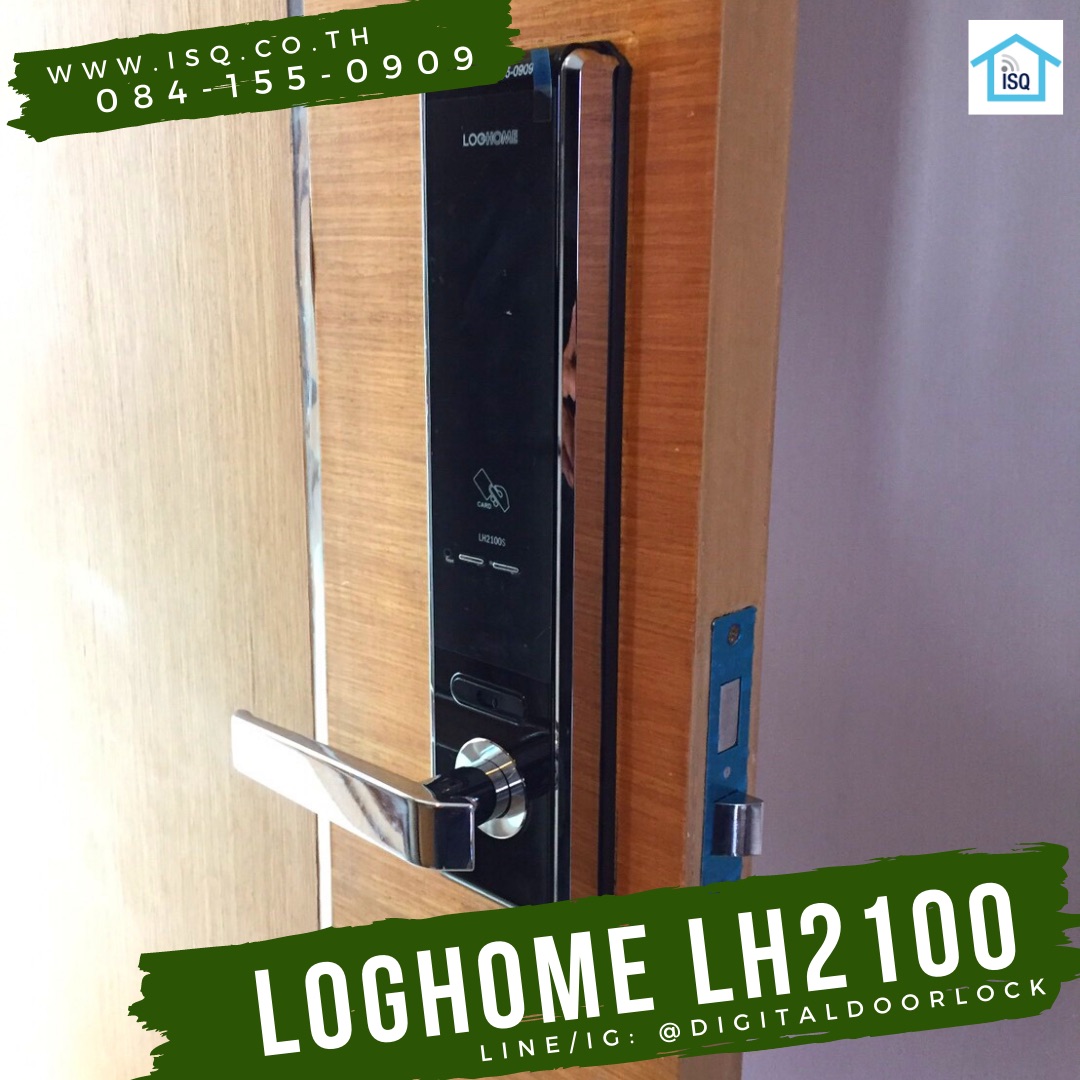

ตัวอย่างผลงานการติดตั้งจริง
Loghome รุ่น LH2200F-SKN เป็น Main lock ที่ใช้ได้ทั้งระบบ รหัส บัตร (รองรับบัตรแรบบิท) สแกนนิ้ว และกุญแจ
Distinctive Features :
● Set up and change the password of 3~19 digits
● Register the touch key up to 50 keys (Touch key type)
● Register up to 100 fingerprints.
● Auto locking function
● Indoor/outdoor double lockup function
● Generate the alarm sound of 90dB or higher when forced to open abnormally
● Can use the 9V emergency power supply
● Prevention of burglary and mischief
(It stops functioning for 1 minute when 5 consecutive password errors)
Product Specification
Category |
Description |
|
Basic information |
Model name |
LH2200F-SKN |
Access-Code |
3 ~ 19 digits |
|
Card registration number |
Within 50 |
|
Fingerprints |
100 |
|
Thickness of the door |
35 ~ 50 mm |
|
Size |
Outdoor body |
76.6 (W) × 304.6 (H) × 22 (D)mm |
Indoor body |
78.5 (W) × 286.5 (H) × 35.5 (D)mm |
|
Material |
Outdoor body |
AL, ZN, PC, ABS |
Indoor body |
AL, ZN, ABS | |
Treat the surface |
Triple metallic coating | |
Power |
Working power |
6V (alkaline battery 1.5V × 4 ea, AA SIZE) |
Emergency power |
9V rectangular alkaline battery
(separately purchased) |
|
Card size |
25mm(W) x 25mm(H) x 0.8mm(D) |
|
Card frequency |
13.561Mhz |
Precaution
|
Read through this manual before use. Read the manual and then operate all functions. For a right after-sales service, prepare a product certificate and keep it. |
Do not disassemble the machine at random. It may result in failure. When you disassemble it at your disposal, it may not work normally. If necessary, contact the customer center. |
|
Don not give the machine any impact or perform remodeling in any case. Otherwise, it may result in failure and malfunction. |
|
Do use the machine at a place where there is no water or moisture. It has no waterproof and dustproof function. So, any failure may be caused by short circuit, etc. |
|
|
Close all holes in the door after installation. Otherwise, outsiders may enter without permission through a slot for milk throwing or questions. |
Keep the machine away from strong inflammable materials like a gas lighter. Otherwise, it may result in failure and malfunction. |
|
Do not use the machine at any place where there is strongb direct sunlight or high temperature. Otherwise, it may result in failure and malfunction. |
|
|
Do not install the machine at any place where it may contact directly with rain or snow. Otherwise, it may result in failure and malfunction. |
|
Do not give direct watering to the machine when cleaning. Otherwise, it may result in failure and malfunction. |
|
When exchanging batteries, replace all of them by new spares. If new batteries are used together with used ones, their life cannot be guaranteed and the machine may not work normally. |
|
Use genuine alkaline batteries only. If rechargeable batteries are used, the machine may not work normally. |
ตัวอย่างผลงานการติดตั้งจริง
SPECIFICATIONS | |
Model (รุ่น) | Loghome LH2200F-SKN |
Type (ประเภท) | Main-lock |
Lock Set | Mortise lock |
Pin (รหัส) | Master 1 ชุด (3-19 digits) User 1 ชุด |
RF Card (บัตร) | รองรับสูงสุด 50 ใบ |
Finger print (ลายนิ้วมือ) | 100 ลายนิ้วมือ |

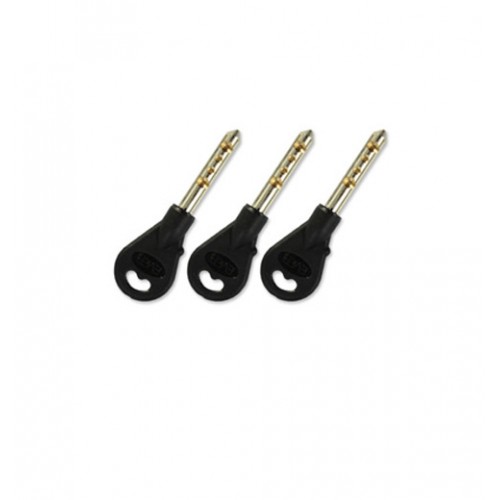

Emergency Key (กุญแจฉุกเฉิน) | 3 ดอก |
Remote Control (รีโมท) | - |
Multi-Authentication | - |
Materials (วัสดุ) | AL, ZN, PC, ABS |
Auto Lock System | Yes |
Force Lock System | Yes |
Power Supply (แหล่งพลังงาน) | 1.5V AA Alkaline Battery (LR6) x 8 |
Emergency Supply (9V.) | Yes |
Front Body Size | 76.6mm (W) x 304.6mm (H) x 22mm (D) |
Main Body Size | 78.5mm (W) x 286.5mm (H) x 35.5 mm (D) |
